Aluminum Pergola 3×6 (1015S Series) | Quick-Install Louvered Roof
The ANYHOO 1015S Aluminum Pergola is a premium, commercial-grade outdoor shading solution engineered for rapid assembly. Featuring a patented Quick-Lock system, it allows contractors to complete the main frame in just 10 minutes without welding or drilling. Available in multiple dimensions, including the highly demanded pergola 3×6, this CE-certified structure boasts Level 10 wind resistance, an invisible drainage system, and 110° adjustable louvers for complete climate control.
Get A Quote
Stop losing profit margins to complicated installations and excessive labor costs. The 1015S Aluminum Pergola is a commercial-grade, fully modular louvered roof system designed specifically for contractors, landscape architects, and high-end distributors.
Manufactured with premium 6063T aluminum alloy and a high-density powder coating, the 1015S delivers a rust-free, maintenance-free shade solution built to withstand severe coastal winds and heavy weather.

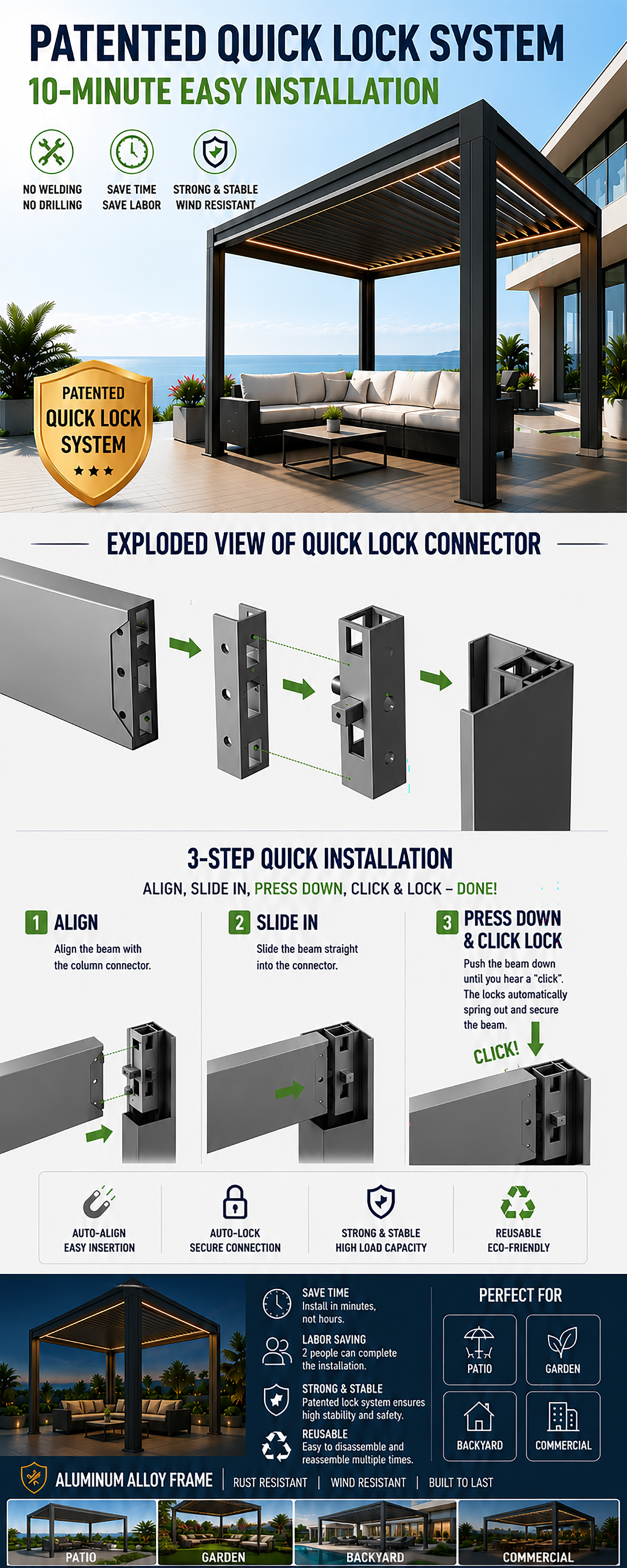

The Patented Quick-Lock System: 10-Minute Easy Installation
We completely re-engineered the frame assembly process. Our patented Quick-Lock System eliminates the need for on-site welding and complex drilling.
A standard two-person crew can secure the main frame in just 10 minutes using a simple 3-step process:
-
ALIGN: Auto-aligning guide positions the beam perfectly.
-
SLIDE IN: The heavy-duty aluminum profile slides smoothly with zero resistance.
-
PRESS DOWN & LOCK: A satisfying “click” deploys internal heavy-duty locks for a permanent, highly stable mechanical bond.
Core Engineering Specifications
Built for structural integrity without sacrificing minimalist aesthetics, the 1015S series features robust profiles:
-
Main Posts: 100x100x1.8mm heavy-duty columns for maximum stability.
-
Side Beam & Gutter: 148x70x1.8mm integrated profile.
-
Single-Layer Louver Blade: 160x31x1.3mm blades featuring an extra-large 110° opening and closing angle for optimal sunlight and ventilation control.
Invisible Drainage & Level 10 Wind Resistance
Never let rain ruin an outdoor commercial space. The 1015S features a highly reliable invisible drainage system. Rainwater flows seamlessly from the top louvers into the internal water tank, down through the structural columns, and discharges safely underground. When fully closed, the structure provides Level 10 strong wind resistance, making it ideal for high-rise terraces and coastal properties.
Versatile Configurations: The Popular Pergola 3×6
Whether you are covering a small residential patio or a sprawling commercial dining area, we offer scalable modular designs tailored for diverse architectural environments.
-
Available Standard Sizes: 3x3m, 3x4m, 3x5m, and our highly demanded pergola 3×6 meters (height: 2.5m).
-
Customization: Fully customizable footprint to fit unique project requirements.
-
Drive Options: Choose between manual operation or electric wireless remote control.
Complete Climate Control & Accessories
Transform the 1015S into an all-weather outdoor pavilion:
-
Integrated Zip Blinds: Features engineered zip track channels for seamless blind integration, offering ultimate wind resistance and privacy control.
-
Integrated LED Lighting: Available in 3000K Warm White, 6000K Cold White, or dynamic RGB strips for evening elegance.
-
Selective Colors: Standard finishes in modern Grey, White, or Black.
Backed by CE Certification and 18 years of manufacturing excellence, ANYHOO is your trusted partner for high-end outdoor shading.
|
Product Name
|
Opening louver pergola
|
|||
|
Post
|
100*100*1.4mm, 120*120*1.6mm,150*150*2.5mm
|
|||
|
Louver
|
123*19.85*1.3mm( Single layer), 158.8*34.7*1.1mm( Double layer), 160*30*1.4mm(Double layer)
|
|||
|
Beam
|
150*33.5*1.4mm, 150*46.5*1.6mm, 173*50*2mm
|
|||
|
Water Gutter
|
57.8*29.5*1.3mm, 63*45*1.4mm
|
|||
|
Available size
|
3*3m, 3*4m,3*5m, 3*6m, 4*4m, 4*5m, 4*6m (Customized)
|
|||
|
Control system
|
Manual, Morterized
|
|||
|
LED light
|
3000-6000K
|
|||
