For architects, contractors, and commercial property developers, outdoor shading is not a luxury—it’s a functional requirement that must perform in real weather conditions.
When specifying awnings for hotels, restaurants, or high-end residential developments, the choice between open and fully enclosed systems comes down to one question: how long do you want it to last?
The full cassette retractable awning solves the durability problem that standard awnings can’t.
What Makes a Full Cassette Awning Different?
The cassette is the housing that wraps around the awning when retracted.
A full cassette encloses everything—fabric, arms, roller tube, and motor—inside a protective aluminum housing. When closed, the building facade stays clean and uncluttered. When open, the system extends to provide shade, weather protection, and usable outdoor space.
This is the defining feature of commercial-grade awnings and the reason projects from luxury hotels to restaurant terraces specify them
Total Protection: The Full Cassette Advantage
The core engineering decision behind a full cassette is simple: protect what you can’t see, and the visible part lasts longer.
Dustproof, waterproof, corrosion-resistant: When retracted, fabric and hardware are sealed from:
UV degradation that fades and weakens standard fabrics
Rain and moisture that leads to mold and fabric fatigue
Dust, leaves, and bird droppings that require constant cleaning
Salt air in coastal installations
The result: A system designed for decades of service, not a few seasons before replacement
Heavy-Duty Structural Integrity
Commercial-scale awnings require commercial-grade engineering.
6063 aluminum alloy frame —the same specification used in marine and architectural applications . Professional outdoor powder coating provides an additional corrosion barrier.
73mm roller tube —most residential awnings use 50-60mm tubes. The thicker wall reduces deflection and ensures smooth operation at larger widths.
Maximum span: Up to 6,000mm wide × 3,000mm projection for single units .
For larger projects, coupled units can reach significantly wider spans—up to 13,900mm by 3,500mm in the markilux 3300 system, for example .
Smart Climate Response & Nighttime Ambiance
Commercial spaces need to function 24/7.

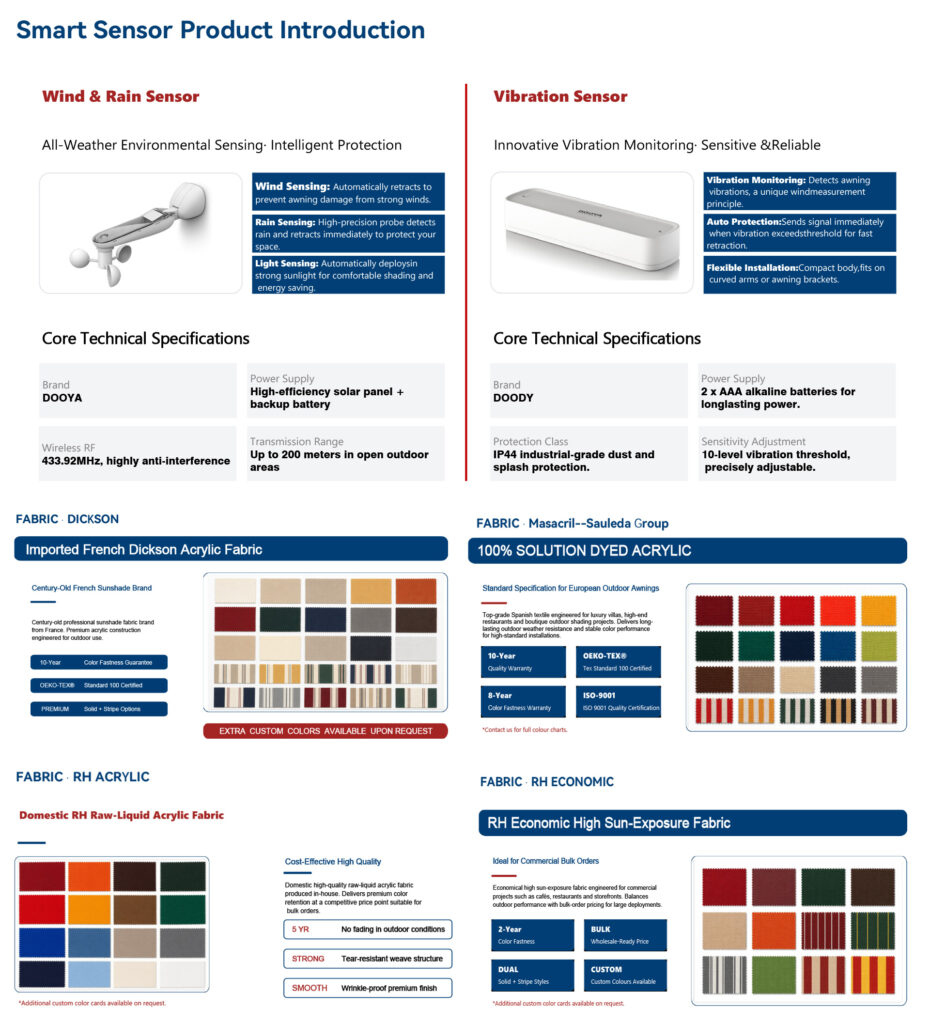

Automated Protection
Powered by intelligent tubular motors (like Dooya systems), the awning integrates:
-
Wind sensors that auto-retract when gusts exceed safe limits
-
Light sensors that deploy during peak sunlight to reduce cooling costs
-
Rain sensors that prevent damage from sudden downpours
-
Vibration sensors for added structural monitoring
This isn’t automation for convenience—it’s automation for asset protection.
Integrated LED Lighting
Nighttime operation is where a full cassette awning separates itself from basic shade structures.
L-chained LED lighting runs along both front and rear curved arms, with an additional LED strip integrated into the cassette body . When extended at night, the awning transforms from weather protection into an atmospheric evening centerpiece—a critical feature for hospitality venues that need to monetize outdoor space after dark.
Fabric Solutions for Any Project Budget
Fabric selection determines performance, lifespan, and cost. We offer options for every specification:
| Fabric Type | Key Feature | Best For |
|---|---|---|
| French Dickson acrylic (Imported) | 10-year color fastness guarantee | Premium hospitality projects |
| Spanish Masacril-Sauleda (Imported) | 100% solution-dyed acrylic, 8-year warranty | High-end residential and commercial |
| Domestic RH raw-liquid acrylic | Premium color retention | Mid-tier commercial projects |
| Domestic RH Economic | High sun-exposure performance, bulk pricing | Volume wholesale orders |
Technical Specifications at a Glance
| Specification | Detail |
|---|---|
| Frame material | 6063 aluminum alloy, powder-coated |
| Roller tube | 73mm diameter |
| Max single-unit width | 6,000mm |
| Max projection | 3,000mm |
| Coupled width capacity | Up to 13,900mm (varies by configuration) |
| Motor system | Dooya tubular with remote control |
| Automation | Wind, light, rain, vibration sensors (optional) |
| Fabric options | Imported premium / Domestic economy |
| Lighting | Integrated LED on arms and cassette |

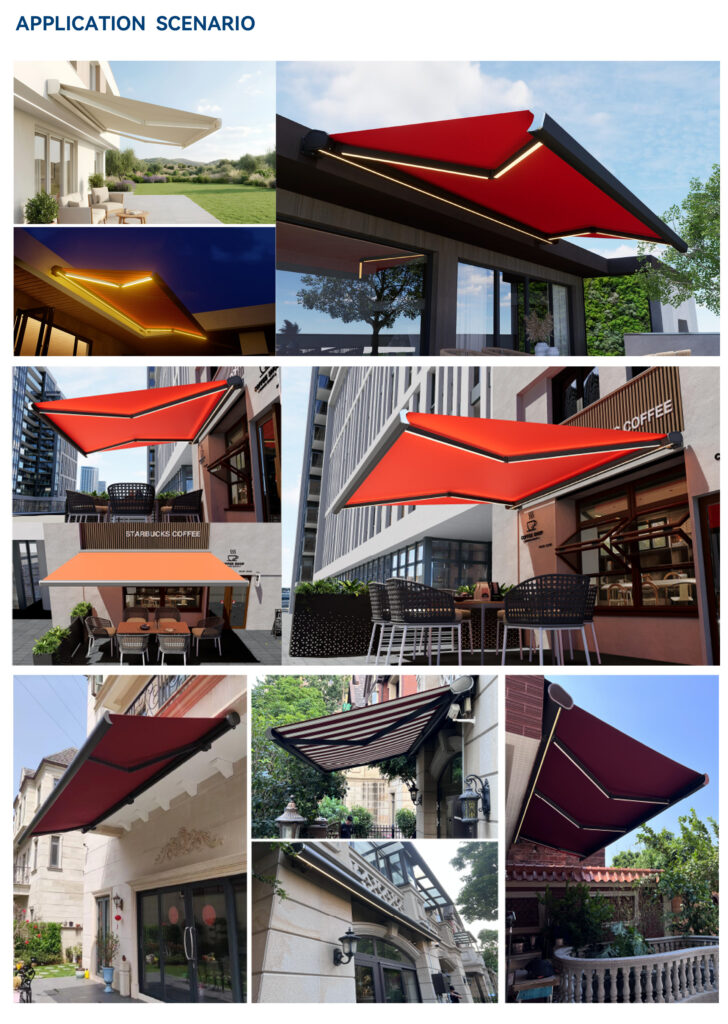

Why Commercial Projects Choose Full Cassette
-
Clean architecture: The cassette disappears into the building line when retracted, maintaining design integrity
-
Extended lifespan: Protected components last years longer than open systems
-
Reduced maintenance: Less cleaning, fewer repairs, lower lifecycle cost
-
Automated protection: Sensors prevent weather damage without staff intervention
-
24-hour usability: Integrated lighting extends usable hours into evening
Partner with a Proven Manufacturer
Whether you require custom dimensions, specialized fabrics, or specific housing colors, our factory is equipped to handle wholesale and bulk engineering orders.
18 years of outdoor shading engineering.
61,000 sqm manufacturing base.
300+ professionals.
Contact our commercial team today at info@anyhooshutter.com or reach out via WhatsApp at +86 19859062003 to discuss your project specifications.
ANYHOO — Engineered for commercial performance. Built to last.
